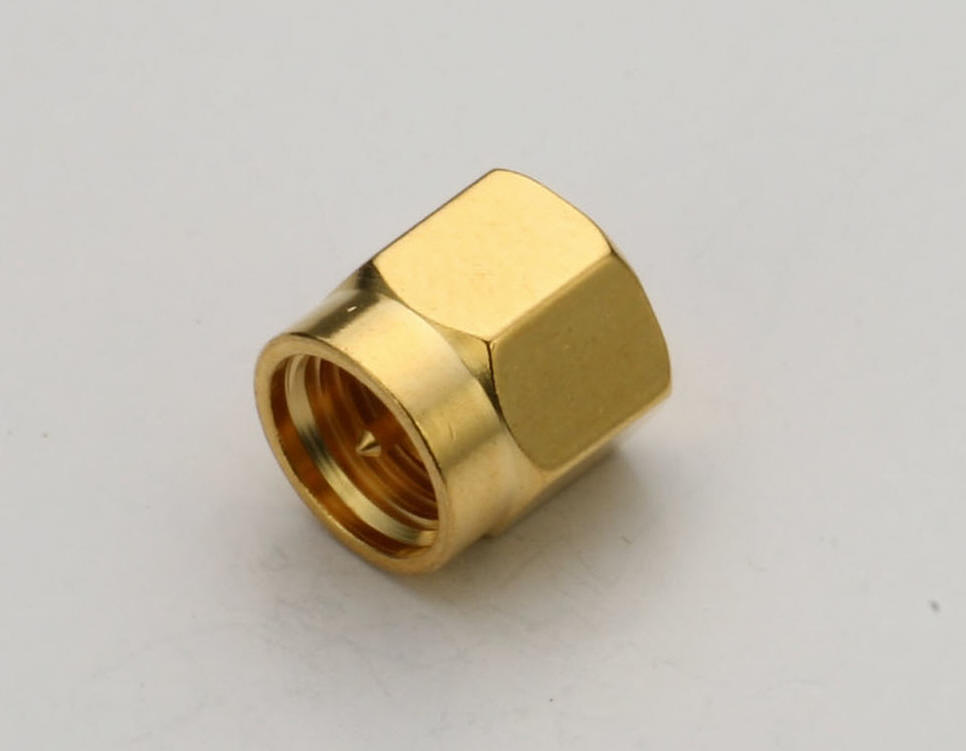

SMA Coaxial Connectors
- Sub Miniature Coaxial Connectors

Our sub miniature connector series are coaxial connectors manufactured in the SMA style meeting MIL-C-39012 specification
It is a 50 ohm super miniature with excellent high frequency capabilities when used for telecommunications
It is most suitable in cases where space is limited and solid reliability is required.
It can be combined with a screw on system and can use flexible cable and semi-rigid cable.
There a re two types of cable connectors, crimp and clamp.

Standards
MIL-C-39012

ELECTRICAL DATA
Impedance : 50ohm
Frequency range : DC to 18GHz - Semi-rigid cable
DC to 12.4GHz - Flexible cable
Contact current : DC 2.0A max.
Working voltage : 1000V - Semi-rigid cable
750V - Flexible cable
Contact resistance : 3.0 §Û - Center contacts
2.5 §Û - Outer contacts
Insulation resistance : 5000 §Û min.
Insertion loss : 0.05 ¡îf(GHz)dB
VSWR : ¡Â1.15+0.2f(GHz)
RF leakage : -60dBm min. between 2-3GHz

MECHANICAL DATA
Coupling nut torque : 12Ncm-170Ncm
Coupling nut retention force : ¡Ã200N
Life : 500 matings
Contact captivation : ¡Ã27N

ENVIRONMENTAL DATA
Temperature range : -65¡É~+125¡É
Corrosion resistance : MIL-STD-202, Method 101, Condition B
Moisture resistance : MIL-STD-202, Method 106
Thermal shock : MIL-STD-202, Method 107, Condition B
Vibration : MIL-STD-202, Method 204, Condition D
Shock : MIL-STD-202, Method 213, Condition I

MATERIALS
Bodies : Brass or Stainless steel
Male contact : Brass
Female contact : Beryllium copper
Insulator : PTFE Teflon
Gasket : Silicone Rubber

PLATINGS
Body : Gold, Nickel, Silver, Suco plating and passivated depends on customer demand
Center contact : Gold, Nickel, Silver, Suco plating depends on customer demand
