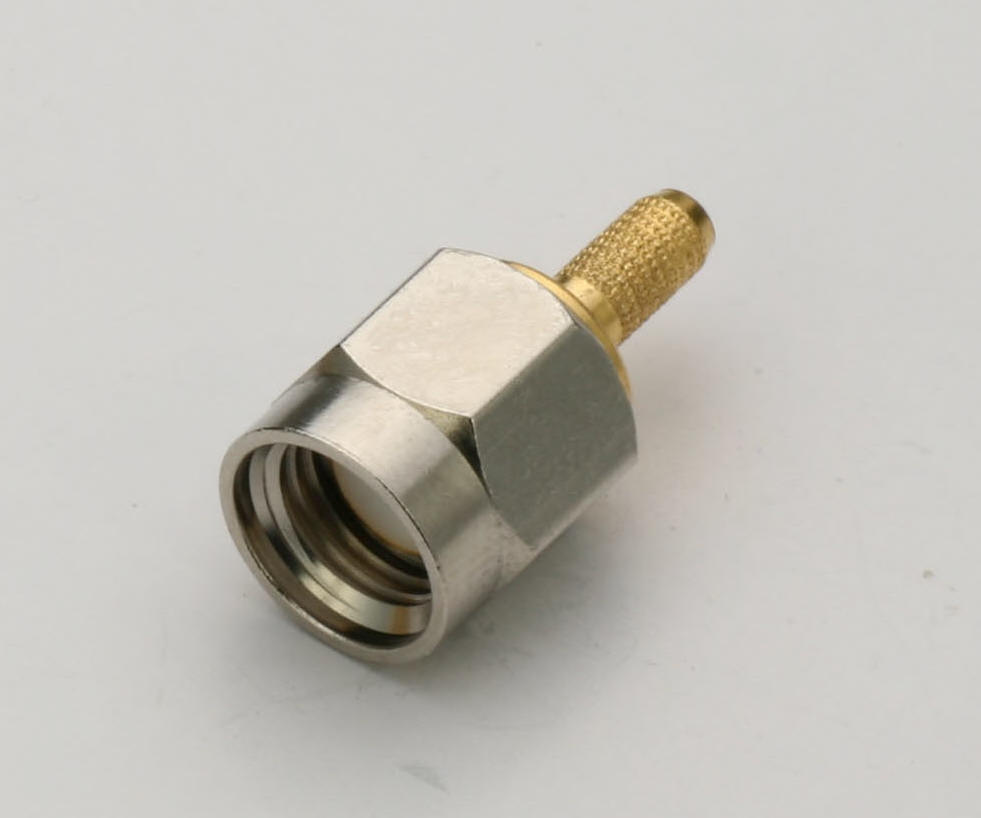

SMA Non-Magnetic Connectors

Impedance: 50 Ohms
Frequancy Range : DC to 4 GHz
VSWR (RG316 basis)
- Straight : ≤ 1.25+0.4f(GHz)
- Right Angle : ≤1.35+0.4f(GHz)
Working Voltage :
- RG-316 : 335VRMS (Sea Level)
Dielectric Withstanding Voltage :
- RG-316 : 1000VRMS (Sea Level)
Insulation Resitance: Min 1,000 ㏁
Insertion Loss: (dB max tested at 1.5 GHz)
- Straight : 0.30dB
- Right Angle : 0.60dB
- Uncabled receptacles : N/A
